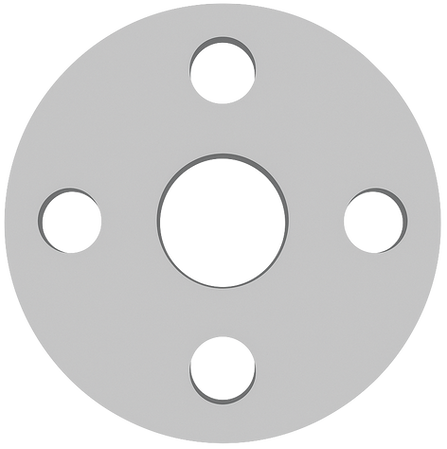

FLANGE ISOLATION GASKET KIT
Model: Kitrix® HGCIK
Category: Flange Isolation Gasket Kit
High Pressure Isolation Kit
HGCIK Sealing gasket is special designed for flange sealing and insulating in all critical services. It's suitable for raise/flat-face and RTJ flanges in all pressure classes even API 15,000 psi service.
High-Pressure Flange Isolation Gasket provides excellent and stable sealing & isolating properties under challenging working conditions.
The seal elements are replaceable in the reusable gasket retainer.
General Information
Seal Groove
Full, Raised Face Gasket and RTJ Flange Type
Material
Metallic Core: SS316.

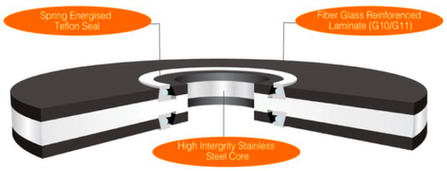

Kitrix® HGCIK High-Pressure Isolation Gasket consists of different materials metal core, G10 / G11, Spring-Energized PTFE Seal as per ASME & API Standards.
The HGCIK gasket inner diameter is exactly matched to the flange bore to eliminate turbulent flow and flange face erosion/corrosion.
-
Application: Provides Cathodic Protection - Pump/Compressor Connections - Insulated Wellheads & Interconnects.
-
Gasket Types: 1. Full Face Type E Gasket.
2. Raised Face Type F Gasket.
3. RTJ Flange Types.
-
Pressure: PN16, PN25, PN40 and PN63.
-
Material: Metallic Core: SS316. Gasket: G10/G11.
-
Seal Groove: Overlap (Type A) or Staggered (Type B)
-
Standards: ANSI, API, BS and DIN.
-
Size: DN15 to DN600, or Custom Made.
